Calculated items

As monitoring environments grow, so does the need to transform raw metrics into meaningful, actionable information. Not every value you need exists on the host itself. Sometimes the most important insights come from deriving new values, ratios, differences, rates, percentages, or complex expressions combining several items.

In Zabbix, this capability is provided through calculated items. A calculated item does not collect data from the host; instead, it produces values based on an expression evaluated by the Zabbix server. This makes calculated items extremely powerful for analytics, SLA reporting, performance ratios, and synthetic metrics across multiple data sources.

In earlier Zabbix versions, calculated metrics were split into two different item types:

• Calculated items
• Aggregate items

Both were powerful but came with inconsistent syntax and separate configuration workflows. This led to confusion, especially when building larger monitoring models or template driven designs.

Starting with Zabbix 7.0, these functions were unified into a single item type: Calculated with a single expression syntax. All former aggregation logic per host, per group, or cross group is now accessed directly through functions such as:

avg()
sum()
percentile()
grpavg()
grpsum()
groupcount()
etc.

This unification dramatically simplifies the platform:

• One place to create derived values
• One syntax to learn
• One template model for all calculations
• More powerful LLD integration

Zabbix 8.0 continues this streamlined approach, making calculated items a cornerstone for building analytics, SLA metrics, and higher-level abstractions.

---

What Are Calculated Items?

A calculated item is a an item whose value is produced entirely by the Zabbix server. Instead of collecting external data, it uses:

• Other item values (last(), avg(), max(), etc.)
• Arithmetic operations
• Built-in functions
• Data aggregation across hosts or host groups

The formula is evaluated at a defined interval, and results are stored exactly like any other metric.

Calculated items are especially useful when:

• You need ratios (e.g., CPU steal % vs. total CPU time)
• You want to convert units (bytes → megabytes)
  • can also be done with preprocessing steps.
• You want to calculate deltas (difference between two counters)
  • can also be done with preprocessing steps.
• You want to aggregate values across multiple interfaces, disks, or services
• You want to normalize data (e.g., dividing by CPU count)
• You want to create synthetic KPIs that do not exist natively

---

Where Calculated Items Fit in the Zabbix Data Model

Calculated items are part of the broader set of Zabbix item types. They behave like:

• Dependent items (no host communication)
• Preprocessed items (transformation of raw data)
• Internal/virtual metrics (local to Zabbix)

... but with a key distinction:

The source data does not trigger an update, only the calculated item's own interval does. This means calculated items must be configured carefully to ensure:

• Their update interval matches the freshness of source data
• Their formulas reference items that exist and return numeric values
• They do not introduce unnecessary load through excessive recalculation

---

How to create a Calculated Item

To create a calculated item:

1. Open Data collection → Hosts → → Items
2. Click Create item
3. Set Type: Calculated
4. Define:
   • Name
   • Type: Calculated
   • Key (unique identifier)
   • Value type (Numeric, float, etc.)
   • Formula
   • Units (optional)
   • Update interval
   • History/Trend storage
5. Save the item

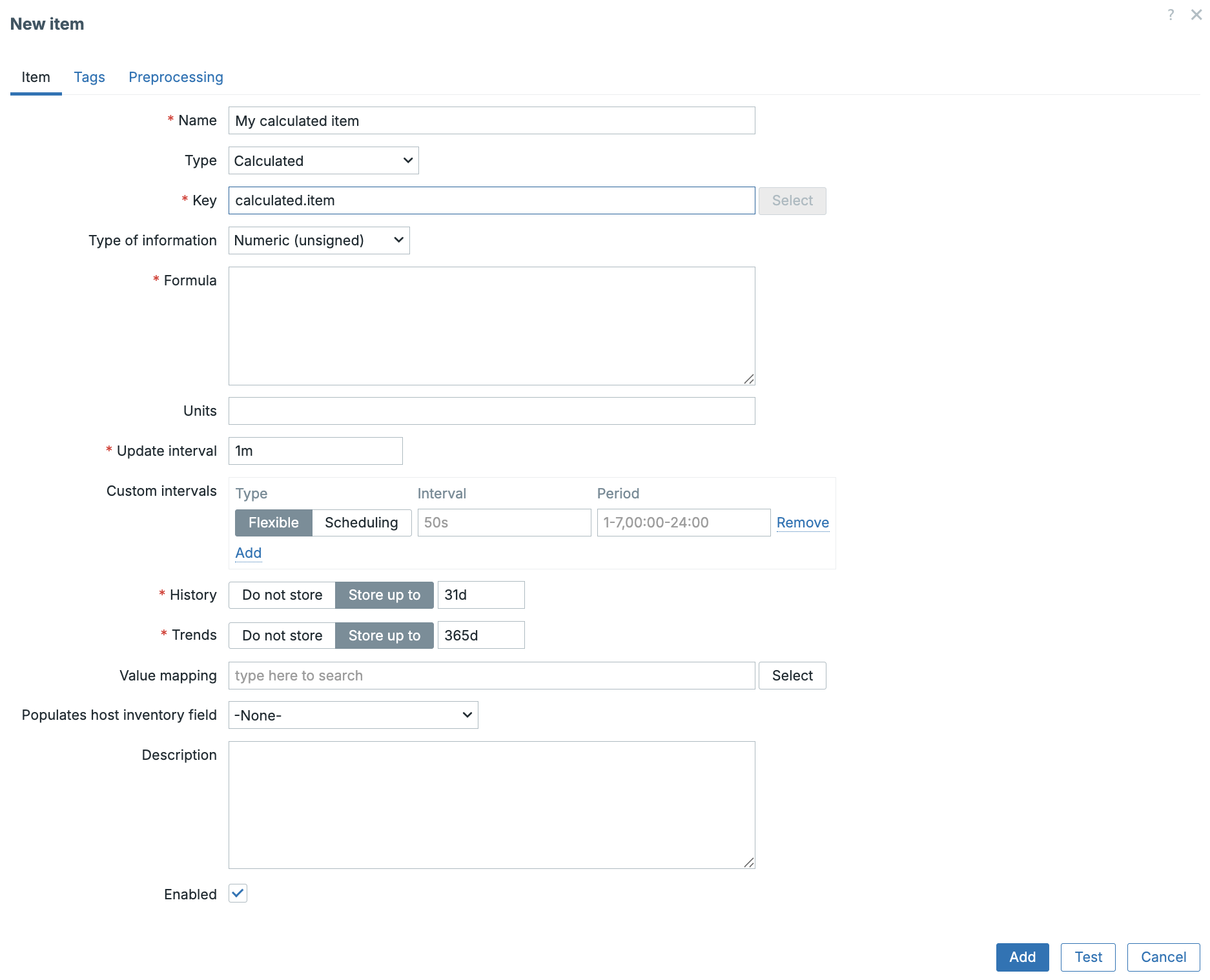

calculated-item

Example Formula :

last(/host/net.if.in[eth0]) + last(/host/net.if.out[eth0])

Using this in our formula would calculate the total traffic by combining traffic in with traffic out. This will only work if we have 2 exact items like this on our host.

Another more useful example as the item net.if.total exists for the example above could be the calculation of the interface utilization.

( last(/host/net.if.total[eth0]) * 100 ) / last(/host/net.if.speed[eth0])

Again on our host we would need the item net.if.total[eth0] and net.if.speed[eth0] for this to work.

Note

Zabbix does not have an Built-in item net.if.speed but we can usually read the speed from network devices like switches. In Linux you could use as alternative method vfs.file.contents["/sys/class/net/{#IFNAME}/speed"] where you replace` with the correct interface name.

Some good practices for Calculated items

1. Align Update Intervals: If your source item updates every 60 seconds, avoid recalculating every 5 seconds.
2. Always Validate Item Existence: If one referenced item is missing, the calculated item returns unsupported.
3. Use Templates, Not Hosts: Especially important when building:
   • CPU utilization ratios
   • Disk usage summaries
   • Network traffic rollups By using templates, calculated items become reusable and consistent across infrastructure.
4. Use Value Type Carefully:
   • Floating point is usually safer unless you specifically need integers.
5. Combine with LLD (Low-Level Discovery) Calculated LLD prototypes allow:
   • Per-disk KPIs
   • Per-interface utilization percentages
   • Storage pool ratios
   • Multi-core CPU computations `

Practical Example

Percentile 95 Network Latency (ICMP Ping)

Why Percentiles Matter

Just like with website performance analysis, average latency can be extremely misleading.

Suppose :

• 99% of all ICMP responses are 5 ms
• 1% spike to 500 ms due to congestion

The average latency still appears excellent, while users may experience intermittent slowness. A P95 or P99 percentile immediately exposes congestion, bufferbloat, microbursts, and jitter spikes. Percentile analysis is one of the most accurate indicators of real network quality.

Required Item: ICMP Response Time

Zabbix provides a built-in Simple Check for ICMP response time (fping-based):

Field	Value
Name	Icmpping
Type	Simple check
Key	icmppingsec[<target-IP>]
Units	s
Update interval	typically 1–10 seconds

The next step is to create our calculated item.

---

Calculated Item: P99 Network Latency (15 minutes)

We compute the 99th percentile over the last 15 minutes.

Field	Value
Name	Network Latency P99 (15m)
Type	Calculated
Key	icmppingsec.p99 (example key)
Value type	Numeric (float)
Units	s
Update interval	30–60 seconds

Formula:

percentile(/<HOST\>/icmppingsec[<target-IP>],15m,99)

Once our item is created we can also add a trigger to the item so that we get an alert if the network quality degrades.

last(/<HOST\>/icmppingsec.p99)>0.150

This will alert us if the P99 ping latency goes above 150 ms.

What This Trigger Detects

This is not a simple reachability check (up/down). This trigger detects:

• Congestion
• Bufferbloat
• Packet-queue delays
• Bursty latency
• Intermittent slow responses
• Micro-outages impacting users

It measures quality, not availability. Average latency might look fine, but P99 tells you:

“1% of the packets are delayed more than 150 ms — users notice this.”
or
This trigger fires if the worst latency (top 1%) over the last 15 minutes is higher than 150 ms.

This is far more meaningful for:

• Internet links
• VPNs
• WiFi infrastructure
• Cloud interconnects
• SD-WAN
• VoIP/Video systems

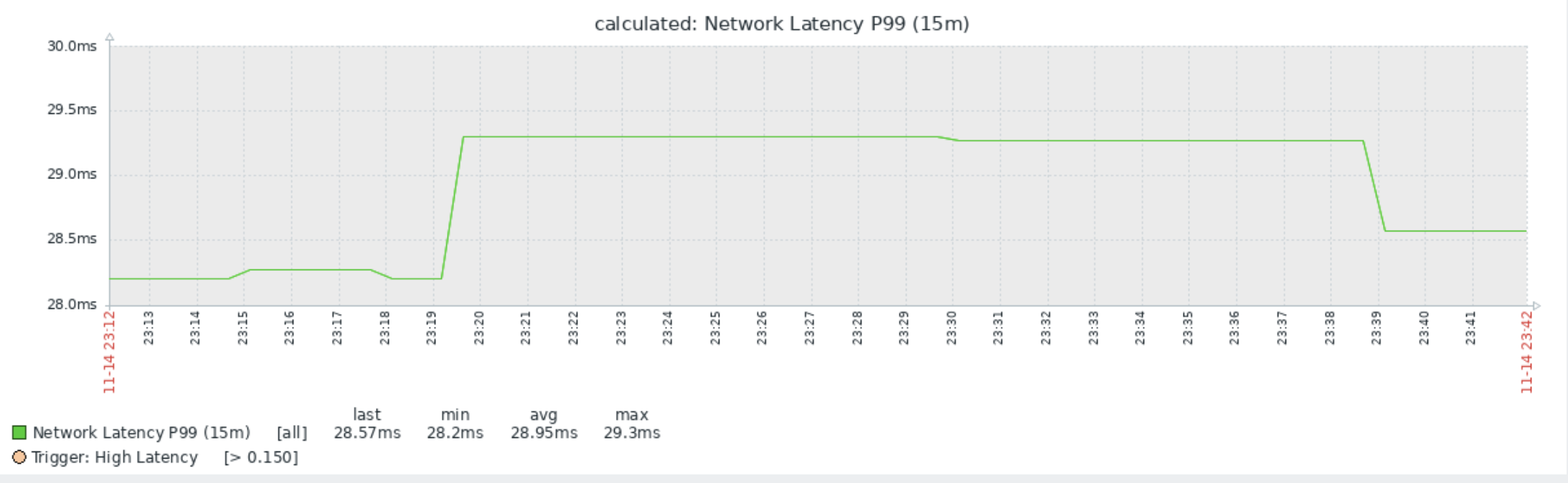

If we now go to latest data page we can take a look at our item and click on the graph button at the end of the screen.

p99 graph

We now have a nice overview of the quality of our network thanks to our calculated item.

Troubleshooting Calculated Items

1. Unsupported Item

Check :

• Does the formula reference items that do not exist?
• Are value types compatible?

• Does the function return something numeric?

• Incorrect Values

Check :

• Unit mismatch (bytes vs bits)
• Wrong interval compared to source data

• Missing parentheses in expression

• No Graphs Displaying

Ensure :

• Value type is numeric
• Units are properly set
• History/trends retention is not zero
